CP Carrillo 107" replacement pistons Harley Twin Cam

BHM107-FM
NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.
Pricing: $444.95

Customize Your Item

- Please select your piston -
 * required
Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.

Description

CP Carrillo High Performance 107" (3.937" bore) big bore replacement pistons for 2007-later Harley Davidson 96" & 103" Twin Cam engines with 4.375" stroke

Manufactured to be the performance piston available. Constructed from from 2618 forged and heat treated alloy. Held to the most detailed inspection and tolerances featuring forced pin oiling, advanced cam and barrel skirt profiles, and the flattest ring grooves possible. Specs below assume stock 86cc head volume unless noted otherwise. Pistons work with stock tapered or aftermarket H-beam rods.

Available in the following configurations for 07-later Twin Cam engines with 4.375" stroke:

  • BHM107-FT - 107" Flat Top piston, 10.25:1 compression, -1.6cc dome
  • BHM107-3 - 107" +3cc dome piston, 10.5:1 compression
  • CPFM-TC-107-MVA105 - 107" +7cc custom dome, 10.5:1 compression for SE MVA, S&S Super Stock, FM Outlaw Heads. Calico Skirt coating
  • CPFM-TC-107-MVA11 - 107" +13cc custom dome, 11.2:1 compression for SE MVA, S&S Super Stock, FM Outlaw Heads. Calico Skirt coating

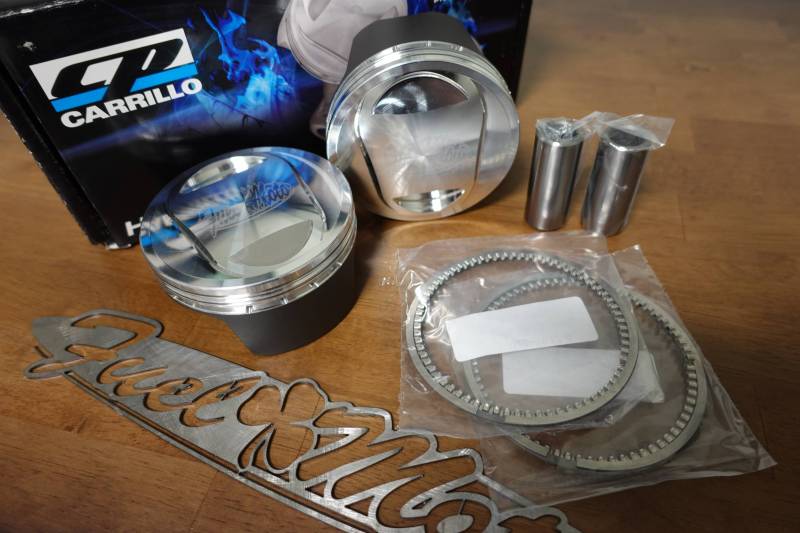

Includes:

  • set (2) pistons
  • complete set (2) high performance ring packs
  • (2) chromoly wristpins & locks



Application List

Fitment for BHM107-FM

Details

  • BHM107-FM
  • BHM107-FM
  • CP Carrillo
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 45.0 lbs.
  • W21.0000” x H14.0000” x L14.0000”
