Dynojet Power Vision

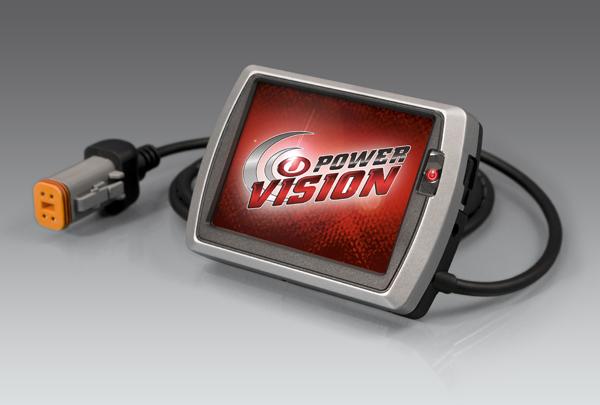

Fuel Moto is proud to introduce the Power Vision by Dynojet, a true evolution in tuning for all 2001-2012 Delphi equipped Harley Davidson’s.  The Dynojet Power Vision is not only the fastest ECM flash tuner on the market, it offers the most powerful tuning features. Power Vision features a fully configurable high resolution touch screen that can be either mounted on your bike and used to monitor real time data, or simply used for tuning, logging or storing maps. Power Vision also includes comprehensive tuning software for your computer including an integrated tuning utility called Auto Tune Basic which uses the stock narrowband sensors, and there is an awesome option the Auto Tune Pro which uses the AT-100 with dual Bosch Wideband sensors.

Power Vision PV-1  2001-2012 Delphi Injected models  including Touring, Softail, Dyna, Sportster & V Rod (*except 11-12 Softail & 2012 Dyna)

Power Vision PV-2  2011-2012 Softail  & 2012 Dyna Models  NOW IN STOCK AND SHIPPING!

Power Vision units are IN STOCK AND SHIPPING for all models

Fuel Moto also has a wide range of Power Vision calibrations we have developed in house available for many applications including most 2012 models. For Power Vision pricing and info contact us at 877-729-4754 or email jamie@fuelmotousa.com

Fuel Moto is a technical partner with Dynojet and we offer full technical support for Power Vision for our customers

Fuel Moto has been fortunate to be involved with Power Vision thru all stages of development as a technical partner and there are so many never before seen features that I don’t know where to start. We wanted to provide the most comprehensive tuning package available, along with an easy to use package. One of the most unique features is the ability to capture your base calibration and immediately start tuning. With Power Vision you can quickly read the calibration in your ECM, retrieve it, and then edit any table within the calibration as required. You can also choose from the database of pre configured calibrations that are fully updatable thru the update client. There are already hundreds of maps developed, and at the moment both Dynojet and Fuel Moto are working on more calibrations every day.

Here are some of the editable tables and utilites within Power Vision:

• Front/Rear VE

• Front/Rear Ignition timing

• AFR/Lambda (you can display as AFR or Lambda)

• Idle RPM

• Rev Limiter

• IAC Steps

• Throttle Blade Control on Drive by Wire models

• Injector size

• Cranking Fuel

• Acceleration  enrichment

• Deceleration enleanment

• PE fuel

• PE spark

• Warmup Enrichment

• Speedo Calibration

• EITMS

• Knock Control

• Adaptive Knock

• AND MORE!

 For more info you can contact Jamie at 877-729-4754 or email Jamie@fuelmotousa.com

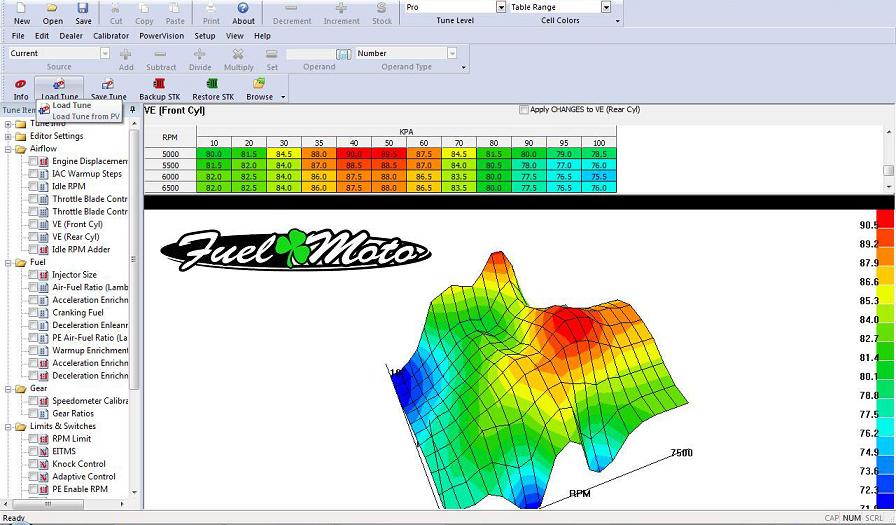

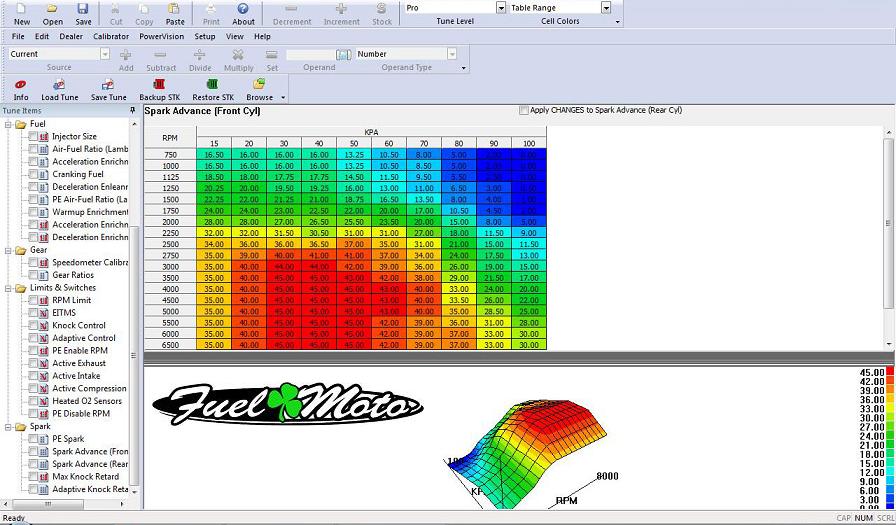

Dynojet Power Vision WinPV Software Screenshots:

Dynojet Power Vision Downloads:

Power Vision Log Tuner is now available!

The Power Vision Log Tuner application allows users to fine tune their calibration with or without a dyno. It utilizes the Power Vision unit as a powerful data logging device along with an easy to use software application to create your tune. The PV Log Tuner software uses your logs and PV value files to create corrected VE and Spark tables based on O2 sensor and knock retard events. The Power Vision log tuner software is free and incorporates two powerful tuning platforms:

Power Vision Log Tuner Basic - uses the factory O2 sensors

Power Vision Log Tuner Pro - uses the Dynojet Dual channel Auto Tune module with Bosch Wideband sensors



Description	Version	Date	Download
Power Vision Log Tuner Basic/Pro Software Windows XP, Vista, Zip File Compressed	1.0.14	08/05/2011



Log Tuner Instructions:
Fuel Moto Power Vision Log Tuner Basic/Pro Instructions click here





SOFTWARE

	Description	Version	Last Updated	DownLoad
	Power Vision Software 32 Bit Version Windows XP, Windows Vista, Windows 7	1.0.44	08/05/2011
	Power Vision Software 64 Bit Version Windows XP, Windows Vista, Windows 7	1.0.44	08/05/2011











Once Power Vision software is downloaded be sure to run the update client and check for additional software and PV firmware updates

	Description	Version	Last Updated	DownLoad
	Power Vision Quick Start Guide	98100014_05	06/22/2011
	Power Vision Intial Software Setup Guide	1.0.0.0	02/25/2011
	Power Vision Getting Started Guide	4.0.0.2	04/19/2011
	WinPV Detail User Guide	5.0.0.0	07/20/2011
	WinPV User Guide in Spanish	5.0.0.0	07/20/2011

Dynojet Power Vision Touch Screen images/video:

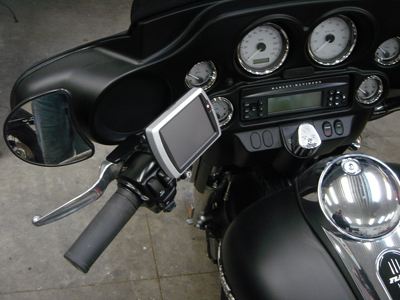

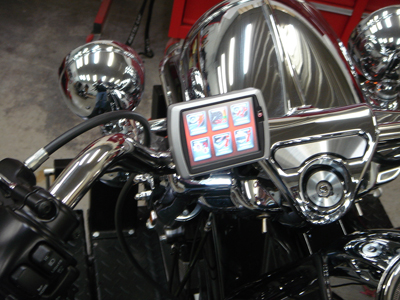

Power Vision unit mounted on bike for real time display. There are literally thousands of display options and combinations, you can choose virtually any ECM channel and display it how you choose. You can put as much or as little data on the screen as you prefer.

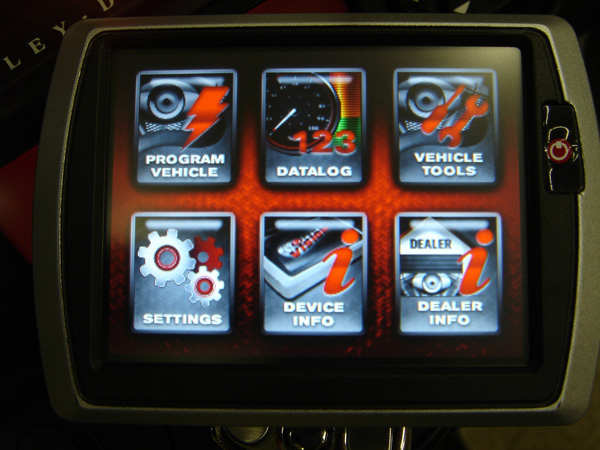

Here is the main screen when you plug in the Power Vision

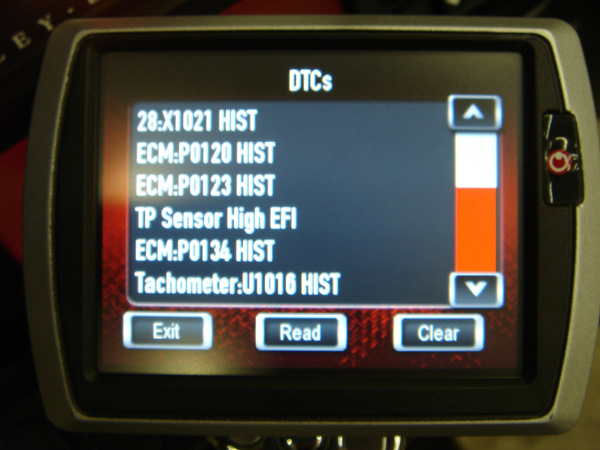

Easily retrieve and clear trouble codes with a description of each of them

Dynojet Power Vision Mounting Options:

If you choose to mount the display on your bike we offer several great mounting options from Techmount:

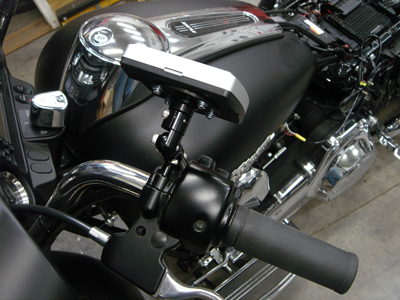

Techmount Control Mount
This mount allow users to mount the Power Vision display on either the clutch or brake master cylinder bracket. It is constructed from billet aluminum and features multiple swivel points

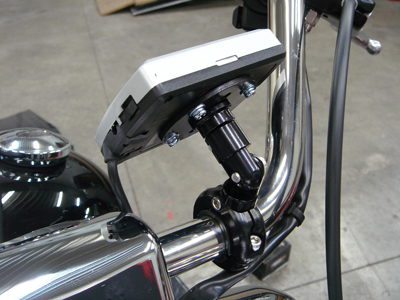

Techmount Bar Mount
The Bar mount will allow users to mount their Power Vision to their handlebar.  It is constructed from billet aluminum and features multiple swivel points
