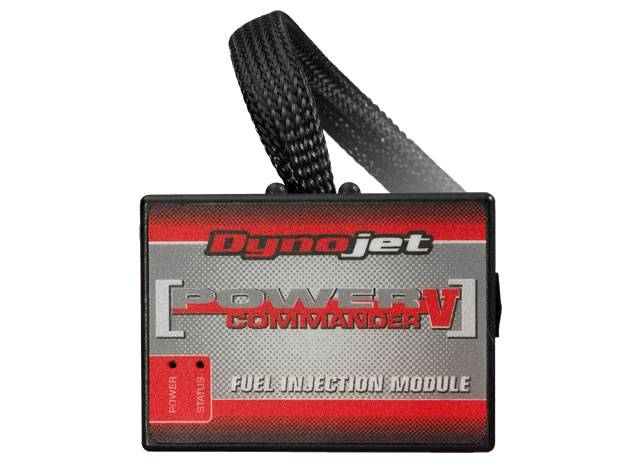

Dynojet - Power Commander V - 14-21 Kawasaki Teryx

17-054
PC-V 14-20 Kawasaki Teryx
  • Fuel and timing control
  • Rev Xtend increases Rev limit
  • The Power Commander V can read the exact engine temp through the bike's own ECM which allows the tuner to choose how much fuel to add during cold starts
  • Cold starting on heavily modified engines should now be much more controllable and easy to adjust
  • Software displays J1850 data from bike's stock ECU
  • Reduced size from the PCIII USB
  • Easy to install
  • USB powered from computer; 9 volt adapter is no longer needed
  • Two position map switching function built in (switch not included)
  • Can add any SPST switch and toggle between two different fuel/timing maps
  • Gear/speed input allows for map adjustment based on gear
  • Analog input allows user to install any 0-5 volt sensor
  • Build an adjustment table based on analog input such as boost or temperature
  • Power Commander V is capable of allowing each cylinder to be mapped individually and for each gear with the gear position input connected
  • Ten throttle position columns
  • World's largest dyno tested map database
  • Enhanced "accel pump" utility
  • Made in the U.S.A.
Limited Supply: only 1 remaining
NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.
Was: $477.77
Sale: $229.99
Save: 52%
Save: $247.78

Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.
Free Ground Shipping

Description

The Power Commander V uses RPM and throttle position inputs to base fuel adjustments on. In some cases additional inputs can be used such as cylinder head or water temperature as well as gear position or boost. The Power Commander V has 250RPM resolution and 10 throttle position columns giving you up to 640 individual mapping points for fuel and an equal number for ignition timing (if ignition equipped). This is the kind of "'point specific" adjustability that is necessary with today's bikes and the parts that are available for them.

The Power Commander V gives you the adjustments you need at an affordable price, with the ease of use today's customers demand.

  • Reduced Size (less than half the size of the PC III USB)
  • USB Powered from computer (9-volt battery adapter is no longer needed for programming)
  • 2 position map switching function built in (map switch not included)
  • Gear position (allows for map adjustment based on gear)
  • 10 throttle position columns
  • Built in quick shifter adjustability (adjustable per gear sensor and shift rods not included)
  • Enhanced "accel pump" utility
  • "Warm Up" fuel adjustment (unit reads engine temp and allows fuel adjustments based on it)
  • Individual Cylinder mapping
  • Analog input (allows user to use any 0-5 volt sensor and build an adjustment table based on its input such as boost)

For technical EFI information along with detailed product support,
please visit our EFI Tuning Models page.
