Fuel Moto M8 Level A CNC Cylinder Head Porting

FMS-M8-LVLA-CNC

Heads are available for core exchange. For those sending heads in for service please contact us for current turnaround times

NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.
Pricing: $899.00

Customize Your Item

- Please select a head core option -
 * required
Qty:
NOTE: This product has the following shipping restriction(s):
  • This product cannot ship to California.

Description

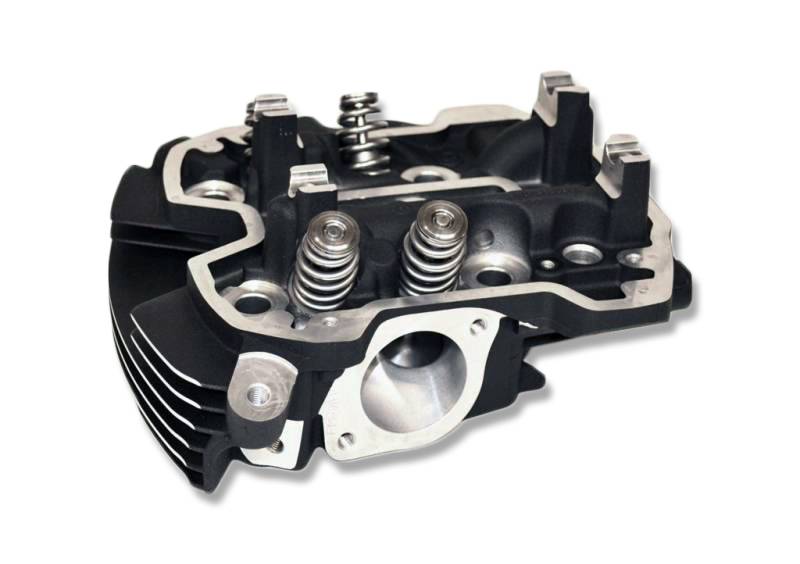

Fuel M8 Moto Level A CNC Cylinder Head Porting

The Fuel Moto M8 Level A CNC cylinder head was developed through dyno & extensive flow bench testing to deliver excellent performance increases on H-D Milwaukee-Eight engines with an emphasis on broad power. The Fuel Moto M8 Level A heads are CNC ported from the the valve seat to the guide, new .580 lift valve springs, competition valve job, and work best on 117-128" engines in the 130-150Hp range. Requires larger throttle body & injectors (SE 64mm TB with CNC ported manifold recommended) and exhaust system that is designed & proven to support the horsepower level for this application.

M8 Level A Cylinder Head Porting includes the following:
  • CNC ported with an emphasis on broad torque & HP
  • custom CNC ported from the the valve seat to the guide
  • Multi radius competition valve job
  • New high silicon/vanadium Kobe alloy .580 lift beehive style springs
  • Replacement of valve guide seals
  • Re-machining of gasket surfaces
  • Heads are thoroughly tested, valve seats are replaced if necessary
  • 89cc combustion chamber
  • Exchange with core charge or send in your heads to be serviced

IF YOU ARE SENDING IN YOUR HEAD CORES PLEASE USE OUR ENGINE CORE RETURN FORM

Application List

Fitment for FMS-M8-LVLB-CNC

Details

  • FMS-M8-LVLA-CNC
  • FMS-M8-LVLA-CNC
  • Fuel Moto
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W12.0000” x H12.0000” x L12.0000”
  • This item ships in its own box.
