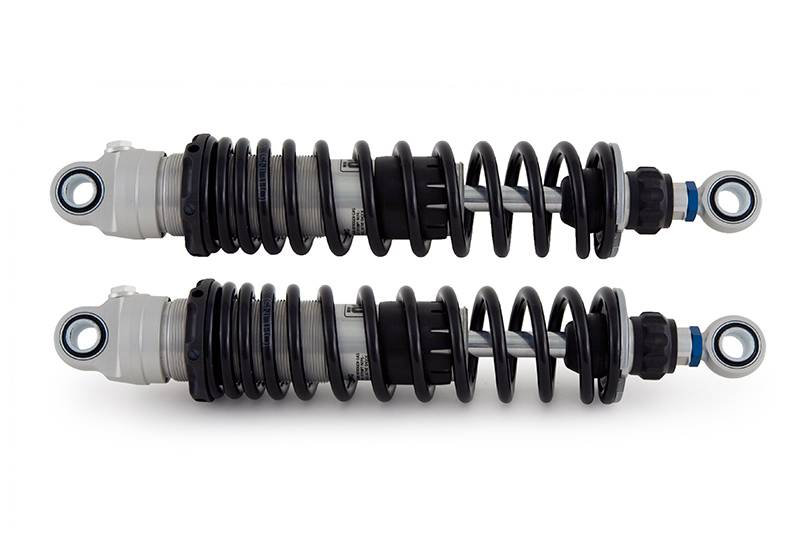

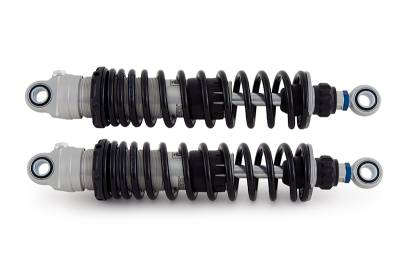

Ohlins S36DR1L Standard Series Rear Suspension - Sportster XL Models

HD 906
Pricing: $1,049.00

Free Ground Shipping


For those who want quality shocks but with a more classic look the STX 36 DR1L is the answer. This is achieved by integrating the gas reservoir with the shocks main body for a slim design, while retaining all the Ohlins damping qualities. Adjustable rebound damping allows you to tune the shock to your liking, while rear height can be altered with the length adjuster. No matter where the road takes you, the STX 36 DR1L provides comfort, style and performance to your Harley-Davidson

  • STX-technology
  • Integrated gas pressurized reservoir
  • Adjustable rebound damping
  • Length adjustable
  • Fully serviceable
  • Tested and tailor-made to suit each application

Shock Absorbers Type Code Breakdown


S - Single Tube Design
36 - Piston Diameter (mm)
D - Monotube high pressure gas type with internal reservoir in main body
R1 - Adjustable rebound damping. Adjuster wheel on end-eye
L - Adjustable length

Product Series

Application List

Fitment for HD 906


  • HD 906
  • HD 906
  • Ohlins
  • New

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W7.0000” x H5.0000” x L36.0000”
  • Free Ground Shipping
