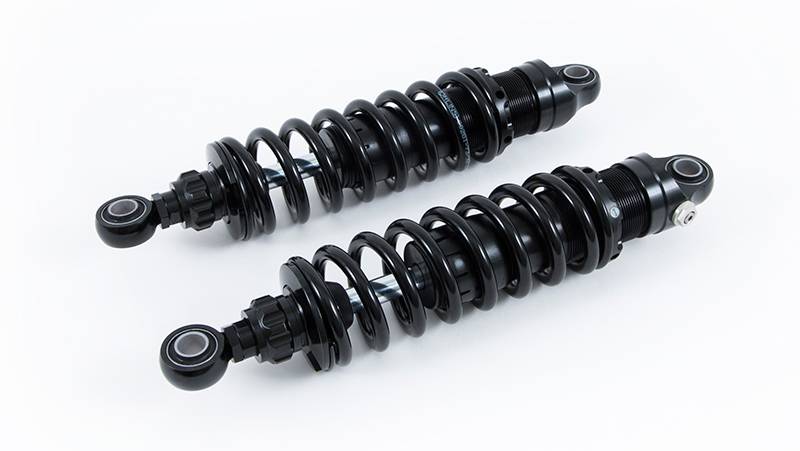

Ohlins S36DR1L Blackline Series Rear Suspension - Sportster XL Models

HD 753
Pricing: $1,049.00

Customize Your Item

- Discount -
 * required
Free Ground Shipping


For those who want the Blackline shocks but with a more classic look the STX 36 DR1L Blackline is the answer. This is achieved by integrating the gas reservoir with the shocks main body for a slim design, while retaining all the Ohlins damping qualities. Adjustable rebound damping allows you to tune the shock to your liking, while rear height can be altered with the length adjuster. No matter where the road takes you, the STX 36 DR1L Blackline provides comfort, style and performance to your Harley-Davidson

  • STX-technology
  • Integrated gas pressurized reservoir
  • Adjustable rebound damping
  • Length adjustable
  • Fully serviceable
  • Tested and tailor-made to suit each application

Shock Absorbers Type Code Breakdown


S - Single Tube Design
36 - Piston Diameter (mm)
D - Monotube high pressure gas type with internal reservoir in main body
R1 - Adjustable rebound damping. Adjuster wheel on end-eye
L - Adjustable length

Product Series

Application List

Fitment for HD 753


  • HD 753
  • HD 753
  • Ohlins
  • New

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
  • W7.0000” x H5.0000” x L36.0000”
  • Free Ground Shipping
