Legend REVO-ARC Shocks Harley Touring FL Models 13" Standard Springs

1310-1878
Pricing: $1,415.95

Qty:
Free Ground Shipping

Description

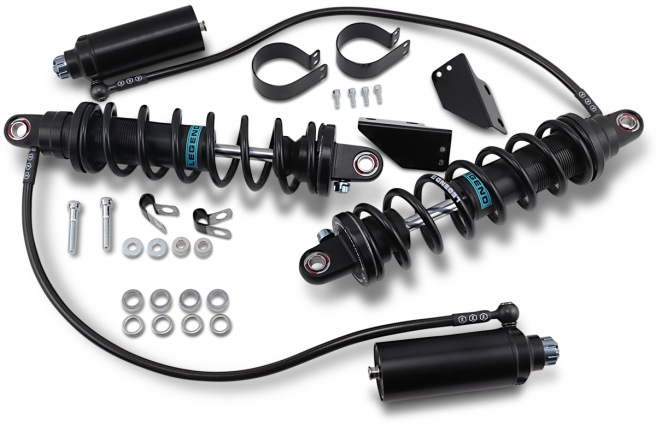

Legend REVO-ARC Remote Reservoir Shocks Harley Touring FL Models 13" with Standard Springs

Legend REVO shocks are engineered for a plush ride using premium components. That are manufactured in Sturgis, SD and feature an industry leading lifetime warranty. These shocks are available in various lengths and spring rates and they are very easy to tune.

  • Remote reservoir design, adjustable compression & rebound dampening
  • Includes mounting hardware. Works with stock saddlebags, HD backrest and accessories
  • Legend's Touring specific spring rates produce superior ride quality and performance
  • REVO coils provide improved plush ride quality, control and resistance to bottoming-out
  • REVO's extended coil length has larger "sweet spot" without increasing overall shock length
  • Requires minimal pre-load adjustment by hand when changing between riders' weights or loads
  • Adjusts by hand, no tools needed
  • Available in 13" and 14", standard or heavy-duty applications
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • 35mm monotube construction
  • Deflective disc valve stacks
  • Balanced/matched piston and base-valve design specific for these motorcycle applications
  • Low friction sealing system and PTFE based sliding bearings for improved performance and feel
  • Seven external knob adjustments allow fine-tuning of rebound
  • Seven external knob adjustments allow fine-tuning of compression
  • Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference or personal riding style
  • Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • Made in the U.S.A.
  • Lifetime Warranty
  • Made in the U.S.A.

REVO Standard Springs are recommended for combined rider weight below 500 lbs, Heavy Duty Springs are recommended for combined rider weight above 500 lbs.

Product Series

Application List

Fitment for 1310-1878

Details

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W25.0000” x H9.0000” x L4.0000”
  • Free Ground Shipping
