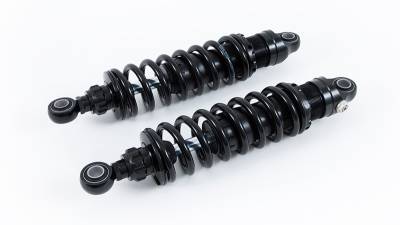

Ohlins S36DR1L Blackline Series Rear Suspension - Dyna FXD Models

For those who want the Blackline shocks but with a more classic look the STX 36 DR1L Blackline is the answer. This is achieved by integrating the gas reservoir with the shocks main body for a slim design, while retaining all the Ohlins damping qualities. Adjustable rebound damping allows you to tune the shock to your liking, while rear height can be altered with the length adjuster. No matter where the road takes you, the STX 36 DR1L Blackline provides comfort, style and performance to your Harley-Davidson

• STX-technology
• Integrated gas pressurized reservoir
• Adjustable rebound damping
• Length adjustable
• Fully serviceable
• Tested and tailor-made to suit each application

Shock Absorbers Type Code Breakdown

S36DR1L

S - Single Tube Design
36 - Piston Diameter (mm)
D - Monotube high pressure gas type with internal reservoir in main body
R1 - Adjustable rebound damping. Adjuster wheel on end-eye
L - Adjustable length
