Fuel Moto 107 Big Bore kit

Fuel Moto 107" Big Bore Kit

The Fuel Moto 107 Big Bore is a complete kit with the highest quality components all of which have been extensively tested in house both on the dyno as well as in real world conditions. This kit works in all 2007-2012 Twin cam 96" and 103" motors and delivers absolute top level performance, it also works with stock cylinder heads and valve train. Our kit includes the following:

Fuel Moto/CP forged pistons 10.25:1 compression
Precision bored OEM cylinders ready to install with ring end gap set (core exchange, or send us your cylinders)
Your choice of Wood Knight Prowler TW-555 or TW-777 cams
Wood Performance Directional Lifters
Fuel Moto Quick Install Pushrods
All necessary gaskets, o rings, and Torrington inner cam bearings

Retail Price $1299.00 Complete kit

$1995.00 installed at our location including a professional Dyno tune

Fuel Moto also offers package deals for the 107" kit bundled along with tuning components, exhaust systems, and air cleaners. We have a wide range of 107" calibrations available for Dynojet Power Vision, PC-V, and Thundermax we can supply with our kits

For Fuel Moto Cylinder head porting click here

For Fuel Moto 98" engine kits click here

Dyno information

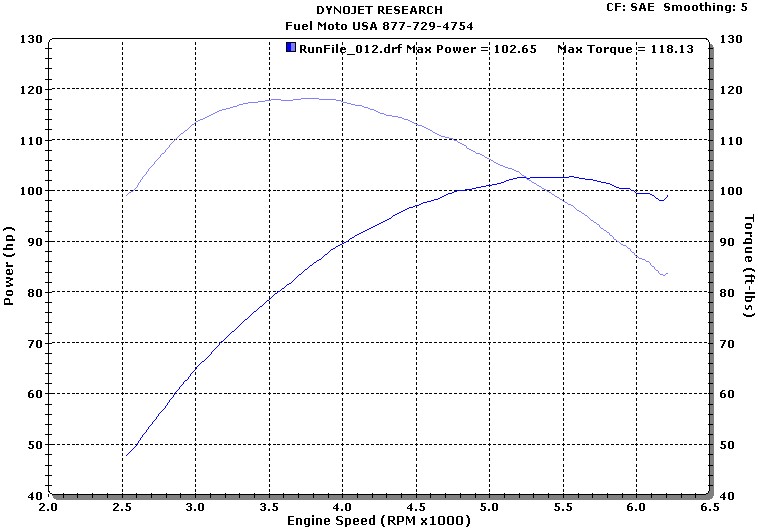

The following dyno chart is from a 2010 Harley Touring model with the following components: Fuel Moto 107" Big Bore kit with stock heads, Wood TW-555 cams, Jackpot Pro Touring mufflers, Jackpot 2/1/2 head pipe, Stage 1 air cleaner, and Power Commander V

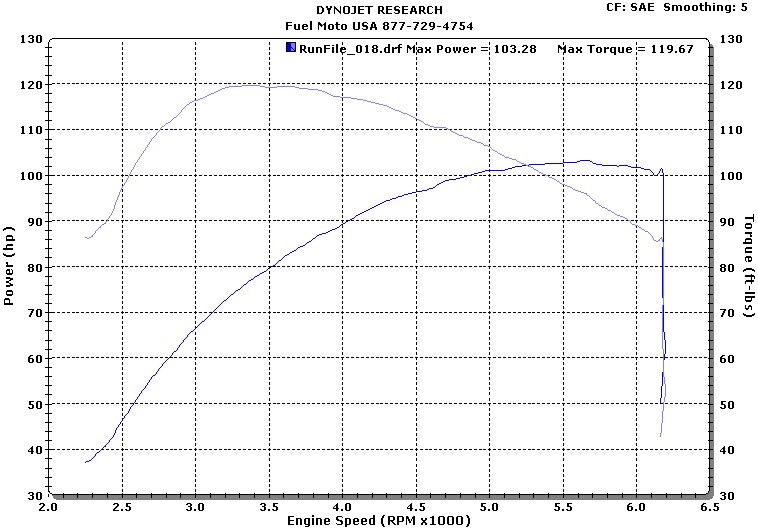

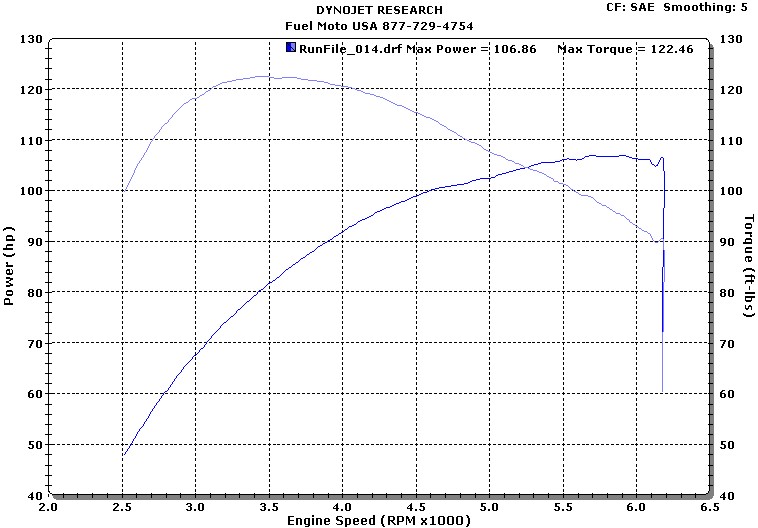

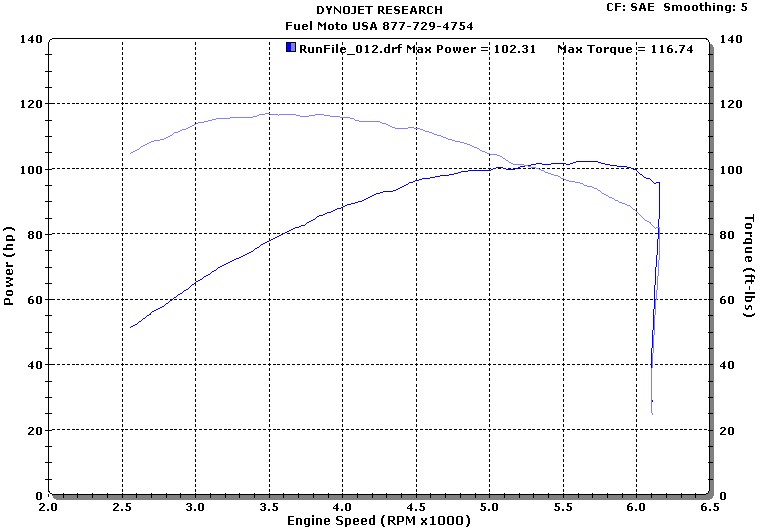

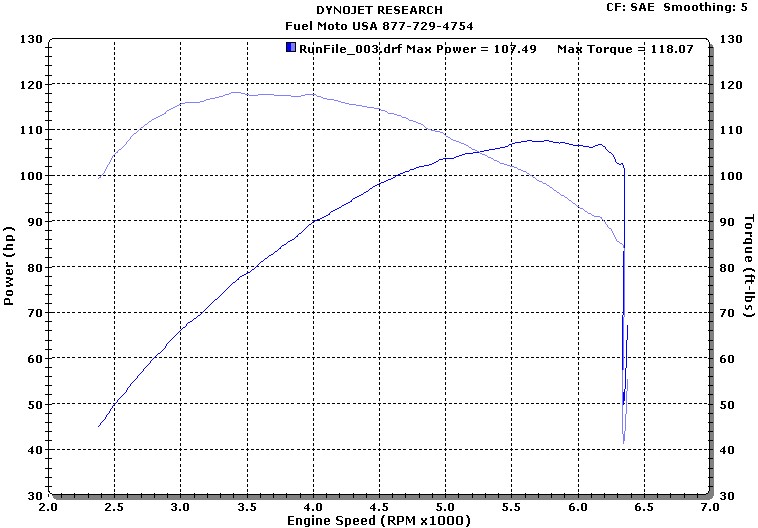

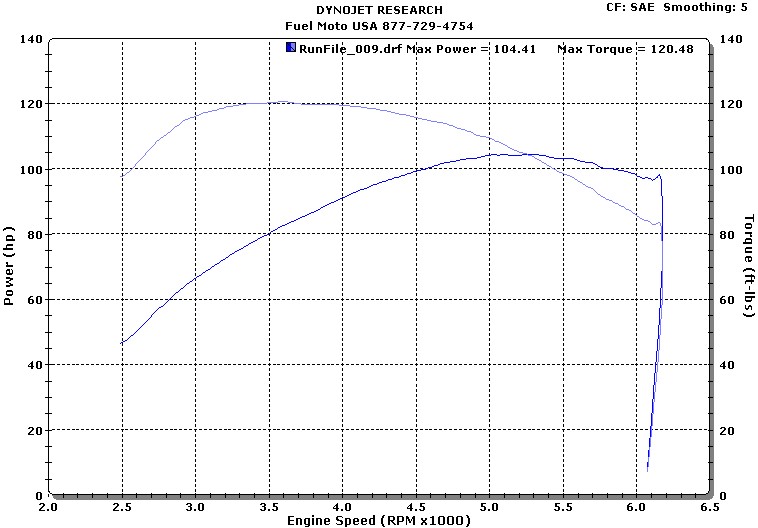

The charts below are just a few examples of the hundreds of FM 107" builds we have done in house. These charts below are all with stock heads and a full custom dyno tune by Fuel Moto. For charts with ported heads please see our cylinder head page
